Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation

Name: Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ041-R
Price: 2580 USD
Availability: InStock

제품 세부 정보

원래 장소: 중국

브랜드 이름: ZhongTu

인증: CE, ISO, RoHS

모델 번호: ZT-HXJ041-R

지불 및 배송 조건

최소 주문 수량: 1

가격: 2580

포장 세부 사항: 목재 케이스

지불 조건: 티/티

공급 능력: 1000sets/월

최고의 가격을 얻으십시오

제품 세부 정보

제품 설명

평가 및 리뷰

제품 세부 정보

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                    multi axis robotic soldering machine, custom fixture soldering automation, automatic soldering machine with warranty


모델 번호.:	ZT-HXJ041-R	전압:	교류 110~240V
힘:	850W	무게:	55kg
치수:	607585cm	주석 직경:	0.4-2.0mm
솔더링 방법:	솔더링 방법	반복 정확도:	±0.05mm
이동 속도:	0-800mm/sec	가열 온도 범위:	0-550℃
기계 축 번호:	3축	X 축:	300mm
Y축:	300mm	z 축:	100mm

모델 번호.:	ZT-HXJ041-R
전압:	교류 110~240V
힘:	850W
무게:	55kg
치수:	607585cm
주석 직경:	0.4-2.0mm
솔더링 방법:	솔더링 방법
반복 정확도:	±0.05mm
이동 속도:	0-800mm/sec
가열 온도 범위:	0-550℃
기계 축 번호:	3축
X 축:	300mm
Y축:	300mm
z 축:	100mm

제품 설명

Automatic Soldering Robot High Precision Desktop PCB Soldering Machine

Company Introduction

Shenzhen Zhongtu Automation Technology Co., Ltd is a high‑tech manufacturer specialized in automatic soldering machines, dispensing machines, screw fasteners and vacuum laminators.

Integrating R&D, production, sales and after‑sales. With 10+ years of precision automation experience.

We deliver high‑precision, stable, cost‑effective soldering solutions for 3C electronics, new energy, automotive electronics and medical devices.

All machines are CE/RoHS certified, factory direct sales, 1‑year warranty and customization available.

Product Overview

Zhongtu Automatic Soldering Machine – 3/4/5 Axis High‑Precision Soldering Robot

With ±0.01mm Repeat Accuracy, 360° Rotation Optional, Dual‑Station Optional, High‑Frequency Heating 200–400W, Auto Tin Feeding & Break‑tin Alarm.

Ideal for PCB, FPCB, LED, connectors, sensors, wire harnesses soldering in 3C, new energy, automotive electronics and medical devices.

Key Feature

±0.01mm High Precision – Consistent solder joints, minimal error
3/4/5 Axis CNC Motion – 3D interpolation for complex paths
200–400W Fast Heating – Rapid heat recovery, stable temperature
Auto Tin Feeding System – Precise tin output, no wast
Break-tin & Alarm – Anti-splash, reduce defects
360° Rotation Axis Optional – Multi-angle soldering for complex parts
PLC + Handheld Control – Stable & easy operation
Easy Programming – Teach pendant / DXF import
Rigid Aluminum Frame – Low noise, long service life
Multi Soldering Modes – Spot/drag/arc/circle soldering
CE/RoHS Certified – Global safety compliance
Custom Fixture & Solution – Tailormade for your products
Low Maintenance – Easy tip replacement & cleaning
Wide Industry Application – 3C/new energy/auto/medical

Product Specifications

Model		ZT-HXJ041-R single head single station	ZT-HXJ441-R single head dual station	ZT-HXJ4411-02R dual head dual station	ZT-HXJ4411-02 dual head dual station(without rotating)
Motion range	X	300mm	500mm	500mm	500mm
	Y1	300mm	300mm	300mm	300mm
	Y2		300mm	300mm	300mm
	Z	100mm
	R	360 degree
Worktable material		Aluminum alloy with surface electrophoretic treatment
Max load	Y/X-axis	5KG
	Z-axis	3KG
Soldering methods		Spot welding,drag welding,tack welding
Repetition accuracy		±0.05mm
Moving speed		0-800mm/sec
Control system		PES Soldering Control System
Parts for option		Temperature controller(150W/200W/400W),solder feeding, and solder fume extraction box
Driving mode		Taiwan HIWIN linear guide
		Italy Iraty conveyor
		Closed-loop stepper mote(Leadshine/JMC)
Tin Diameter		0.4-2.0mm
Power input		AC220V-240V
Power supply		850W	850W	1000W	1000W
Size		607585cm	607585cm	807885cm	1007585cm
Weight		55kg	68kg	75kg	85kg

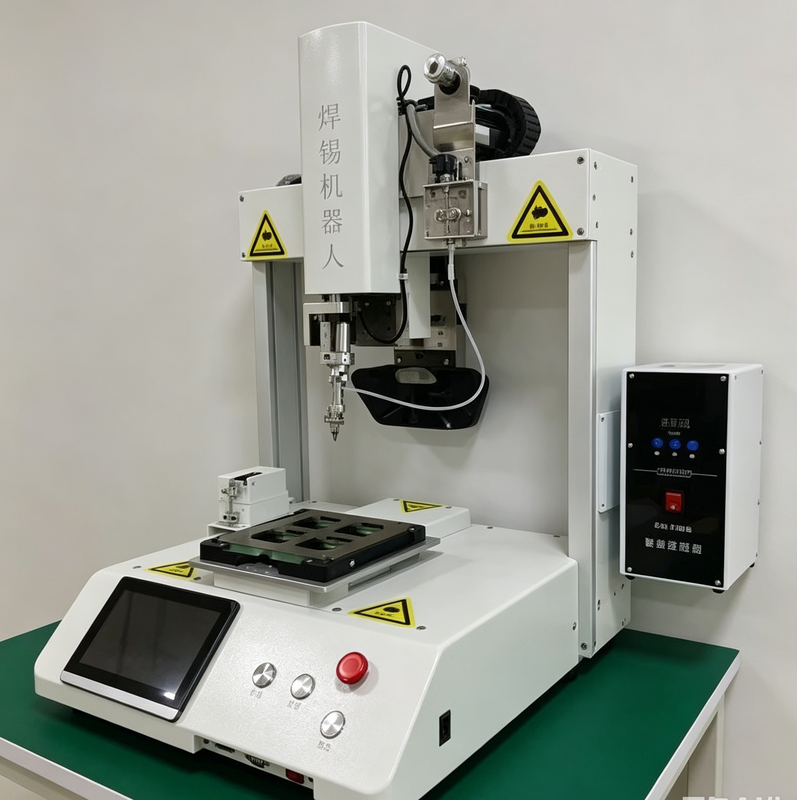

Product Image

Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation 0

Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation 1

Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation 2

Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation 3

Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation 4

Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation 5

Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation 6

Multi Axis Robotic Soldering Machine Custom Fixture Soldering Automation 7

Industry Presence

Packaging & Shipping

Comprehensive Service Support

Pre-Sale Services	In-Sale Services	After-Sale Services
Product Introduction Technical Communication Remote Consulting Service	Product Demonstration Detailed Usage Instructions Comprehensive Customer Support	Video Support Service 1-Year Full Equipment Warranty 3-Year Guide Rail/Motor/Control Parts Warranty

Frequently Asked Questions

Company Background

Who are we? We are based in Guangdong, China, established in 2015, with 11-50 professionals in our office.

Quality Assurance

How can we guarantee quality? Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.

Product Range

What can you buy from us? Soldering machines, precision spot welding machines, glue dispensers, and screw machines.

Competitive Edge

Why choose us over other suppliers? Ultra-professional service and technical expertise delivering high-performance equipment at competitive prices.

Business Terms

What services can we provide? Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.

Warranty Information

What is your warranty policy? 1-year warranty for complete units and 3-year warranty for main boards. Contact us for detailed warranty terms.

Sample Orders

Can I purchase samples? Yes! We welcome sample orders to experience our superior quality and service firsthand.

Manufacturing Capability

Are you a trading company or factory? We are professional automation machine manufacturers since 2015.
