제품 세부 정보
원래 장소: 중국
브랜드 이름: ZT
인증: CE
모델 번호: ZT-SCLSJ-01
지불 및 배송 조건
최소 주문 수량: 1세트
가격: USD850-930/SET
포장 세부 사항: 종이상자
배달 시간: 7-25 근무일
지불 조건: 티/티
공급 능력: 100 세트/월
모델: |
ZT-SCLSJ-01 |
힘: |
100W |
전압: |
AC110-220v/50-60Hz |
공급율: |
0.5초 |
수유 모드: |
터빙피딩, 블로잉피딩 |
반복 정확도: |
±0.02mm |
적용 가능한 나사 범위: |
M1-M5, 길이 최대 20mm, |
나사 재질: |
철, 스테인레스 스틸 등 |
브러시리스 배치: |
CA450 |
작업 기압: |
0.5-0.7mpa |
크기: |
280*210*250mm |
무게: |
18kg |
모델: |
ZT-SCLSJ-01 |
힘: |
100W |
전압: |
AC110-220v/50-60Hz |
공급율: |
0.5초 |
수유 모드: |
터빙피딩, 블로잉피딩 |
반복 정확도: |
±0.02mm |
적용 가능한 나사 범위: |
M1-M5, 길이 최대 20mm, |
나사 재질: |
철, 스테인레스 스틸 등 |
브러시리스 배치: |
CA450 |
작업 기압: |
0.5-0.7mpa |
크기: |
280*210*250mm |
무게: |
18kg |

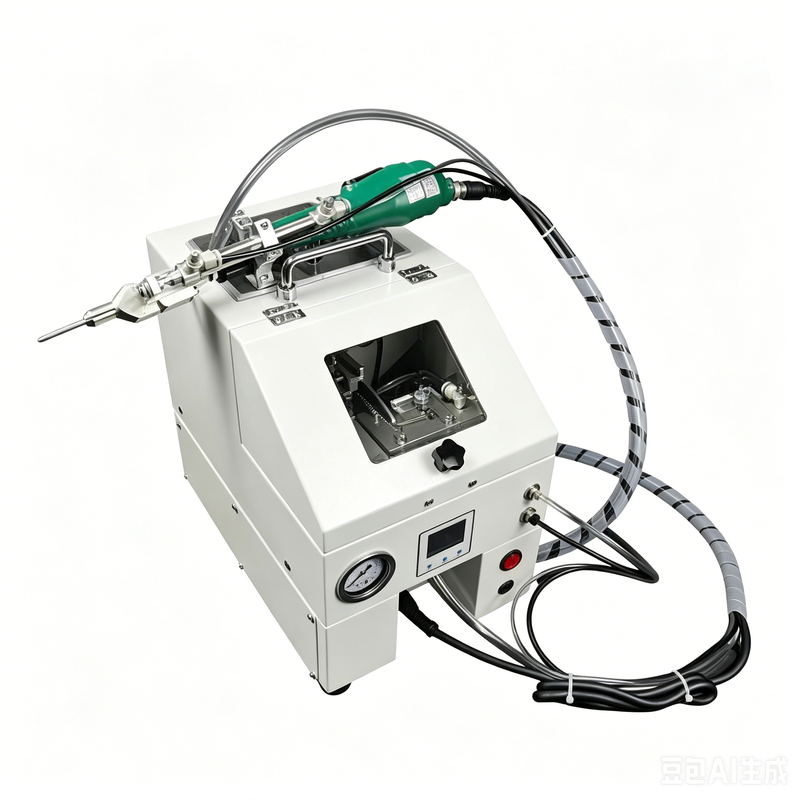

ZHONGTU handheld automatic screw locking machine is a high-efficiency semi-automatic screw fastening solution designed for mass assembly lines.
Adopting advanced turbo feeding technology, it delivers stable screw supply with low noise and no damage to screw surfaces.
✅ Turbo Feeding System: Low noise, no screw color fading, auto sorting of irregular screws.
✅ Anti-Jam Design: One screw per lock, no torque no feeding, avoid jamming completely.
✅ High Efficiency: 1 screw per second, 3x faster than manual, save 1-2 workers.
✅ One-Hand Operation: Ergonomic lightweight handle, free one hand to hold workpiece.
✅ Wide Compatibility: Fit M1-M6 screws, for 3C, home appliance, toy, new energy industries.
✅ Smart Alarm: Audible-visual alarm for no material or abnormal screws.
Why Choose ZHONGTU?
✅Professional manufacturer located in Shenzhen, full experience in automation equipment R&D and production.
✅Strict quality inspection before delivery,
✅1 year warranty for the whole machine.
✅24-hour online after-sales support, solve operation problems in time.
✅Support non-standard customization according to customer's special screw and working requirements.
✅Complete pre-sales technical guidance and operation training.
Specification
|
Model |
ZT-SCLSJ-01 |
|
Voltage |
AC110V/220V/50-60HZ |
|
Power |
100W |
|
Feed rate |
0.5S |
|
Feeding mode |
Turbing feeding, Blowing feeding |
|
Repetition accuracy |
±0.02mm |
|
Applicable screw range |
M1-M5,Length up to 20mm,beyond this specification please provide sample size evaluation |
|
Screw material |
Iron, stainless steel etc |
|
Screw groove type |
Cross,triangle,plum blossom,hexagon socket,octagonal plum,H-shapes, Y-shaped etc |
|
Brushless batch |
CA450 |
|
Work Air pressure |
0.5-0.7MPa |
|
Work Temperature |
(-10)-(+60℃) |
|
Size(L*D*H) |
280*210*250mm |
|
Net Weight |
18KG |
| Pre-sale | In Sale | After Sale |
|---|---|---|
|
|
|
