5 Axis Two Heads and Platform Soldering Machine Automatic Solder Machine

Name: 5 Axis Two Heads and Platform Soldering Machine Automatic Solder Machine
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
Price: 4200 USD
Availability: InStock

제품 세부 정보

인증: CE, ISO, RoHS

지불 및 배송 조건

최소 주문 수량: 1

가격: 4200

최고의 가격을 얻으십시오

제품 세부 정보

제품 설명

제품 세부 정보

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                            5 axis automatic soldering machine, dual head solder machine, platform automatic solder machine


모델 번호.:	ZT-HXJ4411-02R	전압:	교류 110~230V
현재의:	5A	힘:	680W
무게:	85KG	치수:	1000750850mm
솔더 와이어:	0.6~1.5mm 솔더 와이어	온도 정확도:	± 3 °
솔더 공급 속도:	1~50mm/초	반복 정밀도:	±0.02mm
가열 온도 범위:	0-550℃	기계 축 번호:	5축
X 축:	400mm/2X	Y축:	300mm/2Y
z 축:	100mm

모델 번호.:	ZT-HXJ4411-02R
전압:	교류 110~230V
현재의:	5A
힘:	680W
무게:	85KG
치수:	1000750850mm
솔더 와이어:	0.6~1.5mm 솔더 와이어
온도 정확도:	± 3 °
솔더 공급 속도:	1~50mm/초
반복 정밀도:	±0.02mm
가열 온도 범위:	0-550℃
기계 축 번호:	5축
X 축:	400mm/2X
Y축:	300mm/2Y
z 축:	100mm

제품 설명

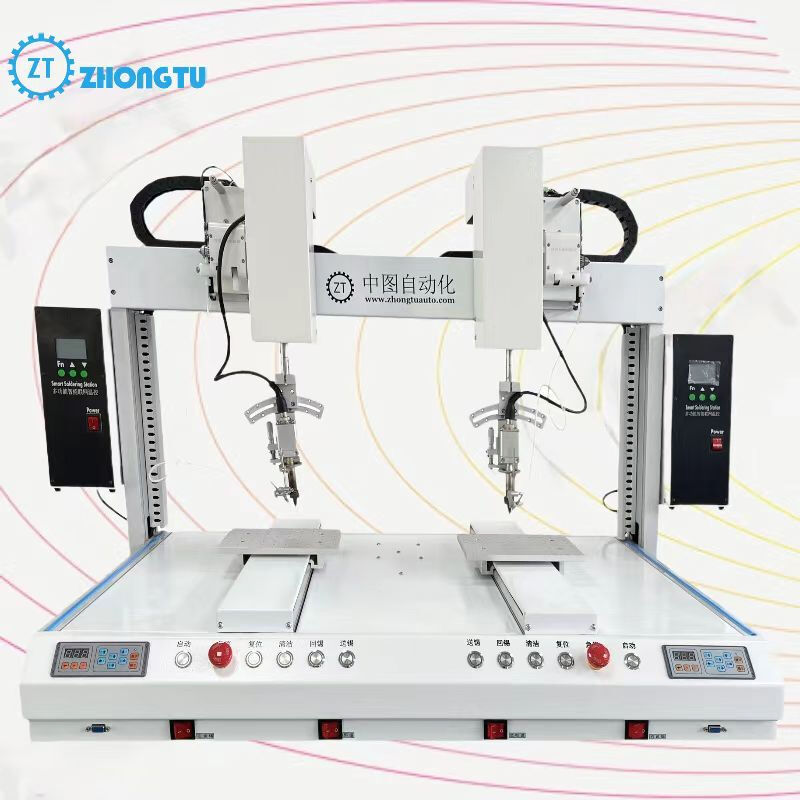

5 Axis Two Heads and Platform Soldering Machine

Automatic solder machine designed for precision manufacturing applications in SMT and DIP processes.

Product Parameters

Name	Automatic Soldering Robot
Place of Origin	ShenZhen, China
Applicable Industries	Manufacturing Plant, SMT, DIP
Key Selling Points	Automatic
Weight	85Kg
Marketing Type	New Product 2024
Voltage	220/110V 50~60Hz
Warranty Period	1 Year
Dimensions	1000750850mm
Warranty of Core Components	3 Years
Solder Wire	0.6~1.5mm solder wire
Core Components	PLC
Temperature Accuracy	±3°
Power	680W
Solder Feeding Speed	1~50mm/s
Current	5A
Repeat Accuracy	±0.02mm

Technical Specifications

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

Product Images

Manufacturer Profile

Shenzhen Zhongtu Automation Technology Co., Ltd. introduces advanced design concepts and technologies and is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.

The company is engaged in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, non-standard automation equipment/automatic loading and unloading manipulator design and manufacturing, and equipment accessories, instruments/meters, electronics sales of accessories.

Products successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing field.

Our Advantages

We are factory manufacturers
Reduce overall cost
Improve automation level
Improve information level
Improve product yield
Provide customers with the most advanced system solutions for automation equipment

Packing & Shipping

Customer Services

Pre-Sale	In Sale	After Sale
Product Introduction Technical Communication Remote consulting service	Show the product Explain in detail how to use the product Answer the questions raised by customers	Support video service The whole equipment is guaranteed for 1 year The guide rail/motor/control parts is guaranteed for 3 years

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2015. There are total about 11-50 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment.

What can you buy from us?

Soldering machine, Precision spot welding machine, Glue dispenser, Screw machine.

Why should you buy from us not from other suppliers?

With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.

What is your Warranty for the product? How do you carry out it?

We provide 1 Year Warranty for unit machine and 3 years warranty for main board. More details please contact us.

May I buy samples from you?

Yes! You are welcome to place sample order to test our superior quality and service.

Are you just trading company or factory?

We are professional manufacturer for automation machine since 2015.
