집 > 상품 > 반자동 용접기 > Semi Automatic Soldering Machine for PCB Assembly 100W Ultrasonic

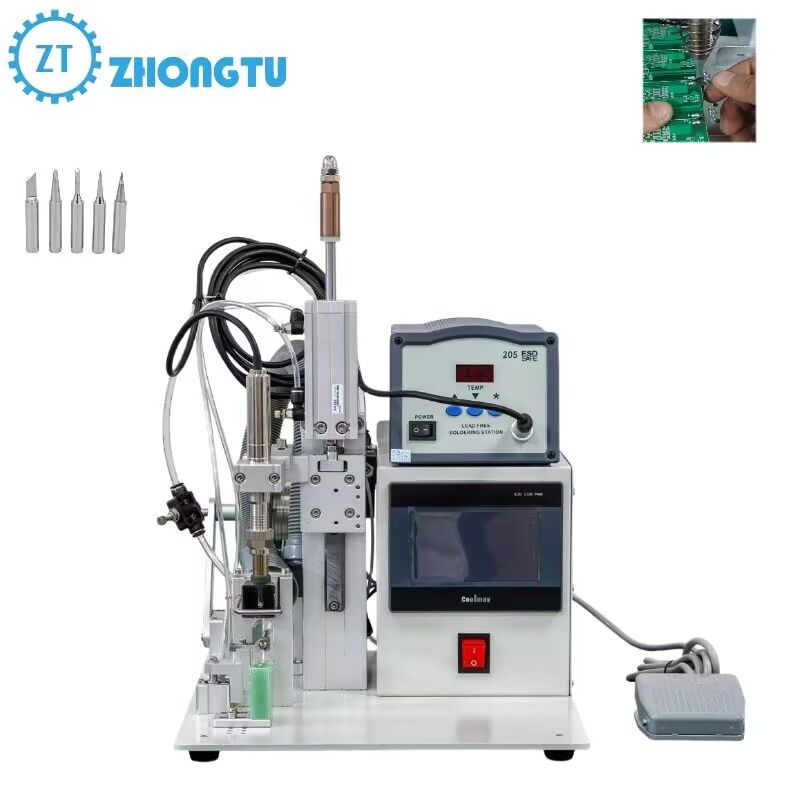

Semi Automatic Soldering Machine for PCB Assembly 100W Ultrasonic

Name: Semi Automatic Soldering Machine for PCB Assembly 100W Ultrasonic
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-DHJ030
Price: 580.00 USD
Availability: InStock

제품 세부 정보

원래 장소: 중국

브랜드 이름: ZT

인증: CE

모델 번호: ZT-DHJ030

지불 및 배송 조건

최소 주문 수량: 1 세트

가격: USD510-650/SET

포장 세부 사항: 종이 박스

배달 시간: 7-15day

지불 조건: t/t

공급 능력: 100 세트/월

최고의 가격을 얻으십시오

제품 세부 정보

제품 설명

제품 세부 정보

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                semi automatic soldering machine 100W, PCB assembly soldering machine ultrasonic, semi automatic soldering machine for PCB


전력 소비:	100W	납땜 인 철 중량:	100g
용접 방법:	초음파	사용자 정의:	사용 가능
작업 빈도:	19.6-20.2kHz	납땜 모드:	수동
초음파 발전기 크기:	L370W420H170mm	생산력:	900 ~ 1200pcs/h
납땜 주석 크기:	OD 0.6~1.2mm(주석 소비량 15% 절감)	용접 역:	0.5-16 mm2

전력 소비:	100W
납땜 인 철 중량:	100g
용접 방법:	초음파
사용자 정의:	사용 가능
작업 빈도:	19.6-20.2kHz
납땜 모드:	수동
초음파 발전기 크기:	L370W420H170mm
생산력:	900 ~ 1200pcs/h
납땜 주석 크기:	OD 0.6~1.2mm(주석 소비량 15% 절감)
용접 역:	0.5-16 mm2

제품 설명

Semi Automatic Soldering Tool Set

Easy operation robot electronics PCBA bonding machine for LCD/LED panel soldering applications.

Product Specifications

Attribute	Value
Power Consumption	100W
Soldering Iron Weight	100g
Welding Method	Ultrasonic
Customization	Available
Working Frequency	19.6-20.2KHz
Soldering Mode	Manual
Ultrasonic Generator Size	L370W420H170mm
Productivity	900~1200pcs/H
Soldering Tin Size	OD 0.6~1.2mm (saves 15% tin consumption)
Welding Area	0.5-16 mm²

Key Applications

PCB Assembly: Ideal for soldering components onto printed circuit boards in mass production
Component Repair: Effective for repairing or replacing faulty electronic components
Wire Soldering: Excellent for electrical wire connections
Automotive Electronics: Used in vehicle electronic component assembly
Consumer Electronics: Suitable for smartphones, laptops, and appliances
Telecommunications: For soldering components in telecom equipment
Industrial Equipment: Applicable in manufacturing industrial machinery
Prototype Development: Useful for electronic device prototyping
Low-Volume Production: Flexible solution for small to medium runs
Technical Education: Used in training programs for soldering techniques

Technical Parameters

Name	Semi-Automatic Soldering Machine
Place of Origin	Shenzhen, China
Applicable Industries	Manufacturing Plant, SMT, DIP
Input Air Pressure	0.4-0.8Mpa
Weight	20Kg
Voltage	110-240V/50HZ Output 24V/2A
Dimensions	400400500mm
Solder Wire	0.6~1.5mm
Core Components	PLC
Temperature Accuracy	±3°
Power	160W
Solder Feeding Speed	1~50mm/s
Soldering Temperature	0 to 500ºC
Repeat Accuracy	±0.02mm

Product Description

This semi-automatic soldering machine combines advanced technology with precision craftsmanship to deliver efficient and accurate welding solutions for electronics manufacturing. Featuring an intelligent temperature control system, it maintains precise solder temperature for stable, reliable joint quality.

The machine's unique tin feeding mechanism operates with uniform, stable speed that's adjustable for different requirements. Its intuitive interface ensures easy operation, allowing even beginners to quickly master the system. Built for durability, the equipment maintains excellent performance in high-intensity production environments.

Ideal for electronic assembly, electrical maintenance, and communication equipment manufacturing, this soldering machine helps businesses improve efficiency, reduce costs, and enhance product quality.

Product Images

Our Services

Pre-Sale	In Sale	After Sale
Product introduction Technical consultation Remote consulting service	Product demonstration Detailed usage instructions Customer Q&A support	Video support service 1-year full equipment warranty 3-year warranty on guide rail/motor/control parts

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2015 with 50-200 employees in our office.

How do we guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment.

What products do we offer?

Soldering machines, precision spot welders, glue dispensers, and screw machines.

Why choose us?

We provide ultra-professional service and high-performance equipment at competitive prices.

What services do we provide?

We accept various delivery terms (FOB, CIF, EXW, FCA, CPT) and payment methods (T/T, PayPal, Cash) in multiple currencies.

What is your warranty policy?

1-year warranty for complete unit, 3-year warranty for main board. Contact us for details.

Can I purchase samples?

Yes, we welcome sample orders to evaluate our quality and service.

Are you a manufacturer?

Yes, we're a professional automation machine manufacturer since 2015.
